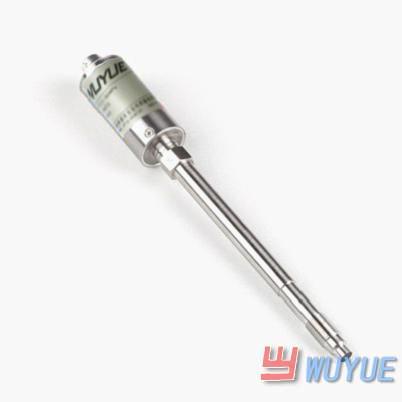

PT111melt pressure transducer/sensor

PT111 high temperature melt pressure transducer/sensor

Wuyue's PT111 series high temperature melt pressure sensors are the ideal choice for petroleum ,fiber,plastics,rubber  extrusion applications, as they are reliable with high accuracy, wide measuring range and stable working performance.Wuyue's PT111 series transducers are the most commonly used alternate fill melt pressure transducer in the world. The wear resistance and corrosion-proof coating extends 3 to 5 times the service life. We can also design and produce on your special requirement.

PARAMETER:

• Pressure ranges:0-5 to 0-1000 bar / 0-1500 to 0-15000 psi
• Accuracy:< ±0.5% FS; < ±0.1% FS
• Signal output:2.0mv/v, 2.5mV/V
• Working voltage:10VDC(6--12VDC)
• Calibration:80%FSO+1%
• Maximum temperature:300°C
• Overload pressure:1.5*FS
• Combined error: ≤0.30Mpa/100°C
• Connector: common 5pin connector

Wuyue's melt pressure transducer got CE Approved

high temperature melt pressure transducer/sensor
